Bertram 28; another mystery

Discussion in 'Bertram Yacht' started by ipeoples, Jan 26, 2010.

You need to be registered and signed in to view this content.
  1. ipeoples, Jan 26, 2010
    #1
    ipeoples

    ipeoples New Member

    Joined:
    Jan 25, 2010
    Messages:
    6
    Location:
    SAN JUAN

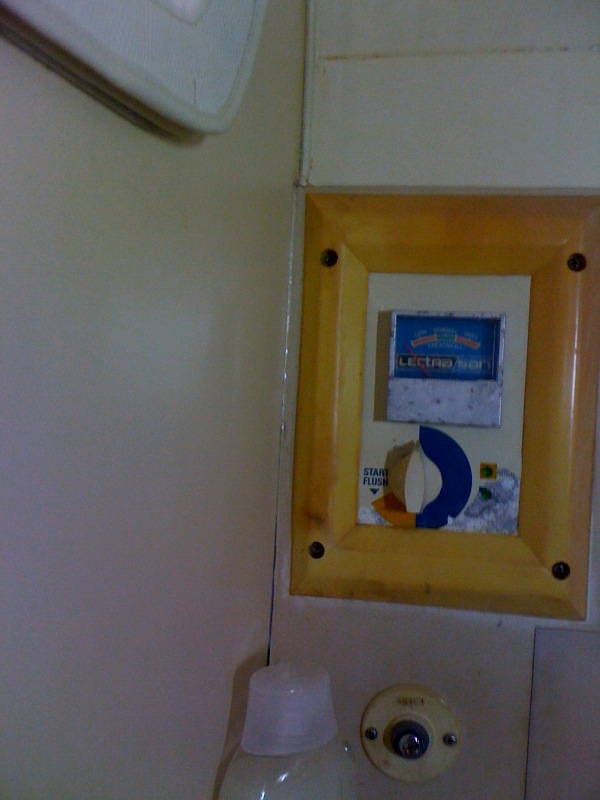

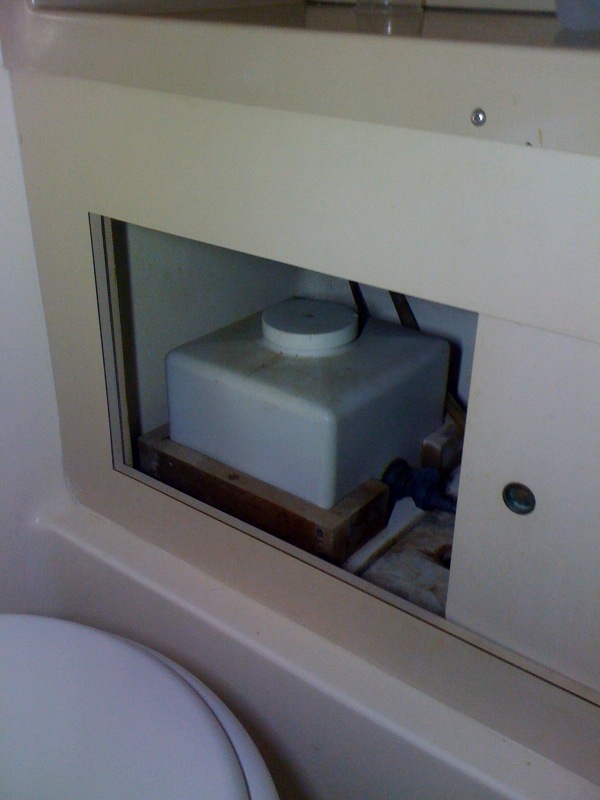

    This is another thing on my boat that I dont know what it is or its function. This is on the bathroom. The toilet has a macerator but dont have a holding tank. The only tank is the one on the picture. Also it has a swith on the bathroom wall, I dont know its use. Another question I have is, If this boat originally comes with a holding tank and where it is located.

    Attached Files:

  2. Ormond Bert54, Jan 26, 2010
    #2
    Ormond Bert54

    Ormond Bert54 Senior Member

    Joined:
    Mar 29, 2009
    Messages:
    470
    Location:
    Ormond Beach, FL
    The holding tank (if there is one) would fit aft of the potty against the port side hull next to the port side engine and just aft of the single battery. Mine is located there and holds approx 25 gallons. It also has a Y valve located just forward of the holding tank that directs the flow into the holding tank or overboard. I have a different potty that doesn't include that little tank.
  3. NYCAP123, Jan 26, 2010
    #3
    NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    11,208
    Location:
    Long Island, NY
    Just a guess, but that looks like a holding tank of sorts. I think I see a valve before it to direct waste to the tank or overboard. Since it's higher than the head I suspect that switch is a pump. Looks like a DYS project so just follow the lines for the sure answer.
  4. Marmot, Jan 26, 2010
    #4
    Marmot

    Marmot Senior Member

    Joined:
    May 20, 2007
    Messages:
    3,311
    Location:
    9114 S. Central Ave
    It is a 2-gallon Lectrasan salt tank. When that type of treatment unit is used in fresh water it requires a source of salt to make the wastewater electrically conductive.
  5. NYCAP123, Jan 26, 2010
    #5
    NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    11,208
    Location:
    Long Island, NY
    Love days when I learn new things. Thanks Marmot.:D
  6. ipeoples, Jan 28, 2010
    #6
    ipeoples

    ipeoples New Member

    Joined:
    Jan 25, 2010
    Messages:
    6
    Location:
    SAN JUAN
    Thanks all of you guys, I learn something new too with Marmot.
  7. chesapeake46, Jan 28, 2010
    #7
    chesapeake46

    chesapeake46 Senior Member

    Joined:
    Jul 26, 2009
    Messages:
    1,831
    Location:
    Chesapeake Bay, Delaware Bay & S.Jersey
    Manufactured by Raitan Engineering, Millville NJ and in Ft Lauderdale, Fl.
    I have had very good customer service with this manufacturer.
    Google them for more info.
