Atlas Shorpower II issue

Discussion in 'Technical Discussion' started by Pascal, Jun 19, 2021.

You need to be registered and signed in to view this content.
  1. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,118
    Location:
    Miami, FL
    Having an issue with our Atlas ShorPower II

    breakers tripped on the dock. Reset. Atlas started but is not connecting.

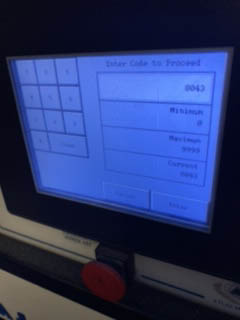

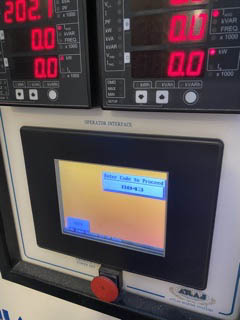

    control screen is locked with a prompt to enter a 4 digit code that is displayed but it s not taking it.

    anybody seen this? I d rather not to be on gen till they open on Monday...

    Attached Files:

    Last edited by a moderator: Jun 19, 2021
  2. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,647
    Location:
    Satsuma, FL
    Wards does not have after hours support?
    Any manuals? Logs? Notes or contact info from previous captain or manager?
  3. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,647
    Location:
    Satsuma, FL
    Probably that new high temp alarm driving it nuts...:rolleyes::rolleyes:
  4. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,118
    Location:
    Miami, FL
    I haven’t tried Ward. Just Atlas. I had an issue 3 weeks ago and one of their tech walked me thru troubleshooting and a reset. But that was on a week day.

    what’s odd is that the Lock Screen tells me what pin to enter. I went thru the manual and found another PIN hand written next to the first one That didn’t work but then when it asks for a pin it tells me to enter the second one. Makes no sense.
  5. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,647
    Location:
    Satsuma, FL
    Never heard of the Atlas stuff having issues and considered it rock solid. Why I am alarmed that nobody is on the other end of the phone at any hour of any day.
    If this is starting into a trend, time to start getting some support after hour phone numbers.
    Maybe time also to get a tech on board and ensure this nuisance stuff is not a reoccurring issue.
    Proprietary software can be confusing if your not on the same logic level.
    I thought Ward supported Atlas stuff down there. Never an issue up here so I'm just assuming.
  6. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,432
    Location:
    Fort Lauderdale
    Is there a way to bypass the Atlas? Considering you're on a US built boat, it might have a way to bypass it and just go straight from boat to shorepower.
  7. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,118
    Location:
    Miami, FL
    Unfortunately no. I checked everything incl the manual. Plus from what i understand the atlas replaces the isolation transformer so no neutral coming aboard.
  8. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,118
    Location:
    Miami, FL
    Turned out to be a comm issue between the screen and the CPU. A quick call to Atlas this morning got me back in business by recycling a small switch on the CPU.
  9. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,647
    Location:
    Satsuma, FL
    Gaww, cycling a switch was the high-tech repair?
    It didn't clear on it's own power off cycle before the gen-sets were enabled?
    You get the 24hour phone number?
  10. rtrafford

    rtrafford Senior Member

    Joined:
    Jul 13, 2019
    Messages:
    1,578
    Location:
    Vero Beach
    Any issue I've ever had w Atlas has been related to temp and a reset, often with a cleaning in between.
  11. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,118
    Location:
    Miami, FL
    No a full power off didn’t reset it. had to cycle the tiny switch inside the panel
  12. rtrafford

    rtrafford Senior Member

    Joined:
    Jul 13, 2019
    Messages:
    1,578
    Location:
    Vero Beach
    Does that board inside have a backup battery in it? I'm thinking it does and keeps power to the board for a while....
