Anchor shackle & swivel

Discussion in 'General Yachting Discussion' started by T.T., Mar 14, 2012.

You need to be registered and signed in to view this content.
  1. T.T., Mar 14, 2012
    #1
    T.T.

    T.T. Senior Member

    Joined:
    Jan 22, 2010
    Messages:
    92
    Location:
    S.F.
    Time to consult the expert advice available on this forum. I received shipment of a Manson plow anchor (stainless 60#) for one of the boats I maintain. The width of the shank at the bore where the shackle will attach is 1 1/4".
    I am having trouble locating a source for a stainless shackle that will fit without fitting a shackle so big that it is aesthetically not acceptable. Any ideas on sourcing such hardware? This assembly also requires a swivel, and I would appreciate recommendation on design as I have read about failure and sub standard materials. Also, any experience with stainless short length spliced to the galvanized chain. Owner would like to have all stainless on deck showing.

    This forum is a very useful and well run resource...Thank You!!
  2. Pascal, Mar 14, 2012
    #2
    Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,546
    Location:
    Miami, FL
    If you really want a swivel, the the Kong is the way to go. I cheaped out a few years ago and used a Suncor... Cost us a 110 claw...

    I don't use a swivel...all chain with a 176lbs claw, no issues and I anchor out a lot! As to adding some SS chain There are special links you can get to link chain but why add a weak link to a fairly critical system?
  3. K1W1, Mar 14, 2012
    #3
    K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,427
    Location:
    My Office
  4. AMG, Mar 14, 2012
    #4
    AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,380
    Location:
    Sweden
  5. T.T., Mar 14, 2012
    #5
    T.T.

    T.T. Senior Member

    Joined:
    Jan 22, 2010
    Messages:
    92
    Location:
    S.F.
    Thank you for the replies, I need to research these options.
  6. Old Phart, Mar 5, 2014
    #6
    Old Phart

    Old Phart Senior Member

    Joined:
    Mar 14, 2011
    Messages:
    1,329
    Location:
    I dunno
    Still thinking? :rolleyes:

    We are still waiting.
  7. Capt Bill11, Mar 5, 2014
    #7
    Capt Bill11

    Capt Bill11 Senior Member

    Joined:
    Feb 27, 2006
    Messages:
    1,459
    Location:
    Sarasota/Ft. Lauderdale FL
    Having a shackle between the anchor and swivel may not look good to you but it's not a bad thing to have. It. An keep the swivel from binding up on the anchor a the boat swings.
  8. T.T., Mar 6, 2014
    #8
    T.T.

    T.T. Senior Member

    Joined:
    Jan 22, 2010
    Messages:
    92
    Location:
    S.F.

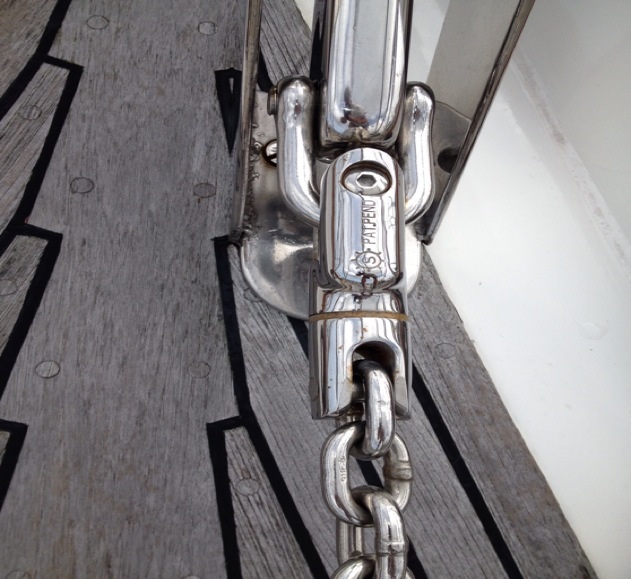

    Gentlemen, please accept my apologies for dropping the ball, or shackle as it were. I found a Suncor shackle and with a bit of machining, fit nicely over the anchor, with enough room for a swivel from the same mfr. The shackle bolt was tack welded. Along with the 3/8" stainless chain, made a nice compliment to the bow, without being disproportionate. This boat will most likely not use the anchor, as she is used as a day boat.

    Attached Files:
