95/355 Thru Hull fuel vent?

Discussion in 'Carver Yacht' started by seldomdry, Apr 4, 2013.

You need to be registered and signed in to view this content.
  1. seldomdry, Apr 4, 2013
    #1
    seldomdry

    seldomdry Member

    Joined:
    Oct 10, 2012
    Messages:
    79
    Location:
    Stillwater MN
    Fuel vent caps missing. Black ridged nipple coming out of hull. Cant find hose on inside of hull. Any clue of manufacturer??

    THX
  2. seldomdry, Apr 5, 2013
    #2
    seldomdry

    seldomdry Member

    Joined:
    Oct 10, 2012
    Messages:
    79
    Location:
    Stillwater MN

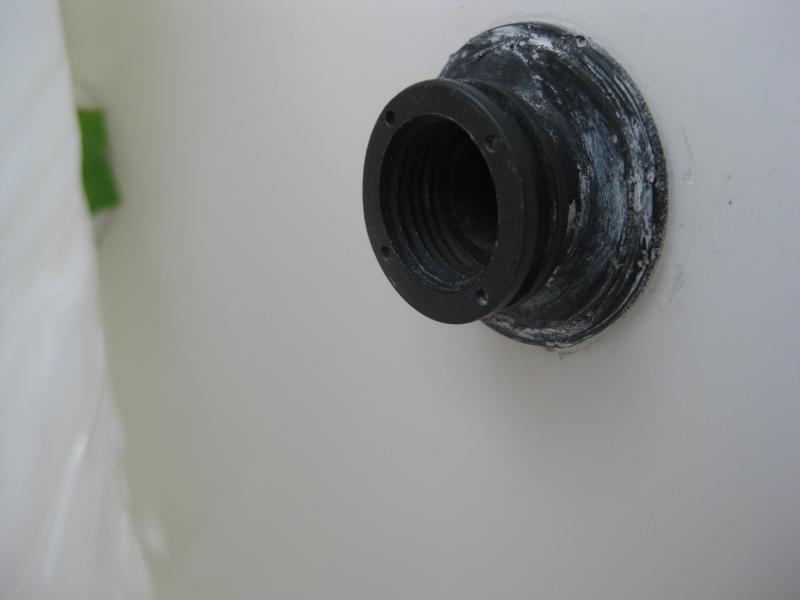

    IMG_2206.jpg here is pic of thru hull. Need cover....
  3. NYCAP123, Apr 5, 2013
    #3
    NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    11,208
    Location:
    Long Island, NY
  4. seldomdry, Apr 5, 2013
    #4
    seldomdry

    seldomdry Member

    Joined:
    Oct 10, 2012
    Messages:
    79
    Location:
    Stillwater MN
    Thanks but I have checked West, Attwood, Perco and Forespar. Of course I can not find hose's inside hull.....
  5. NYCAP123, Apr 5, 2013
    #5
    NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    11,208
    Location:
    Long Island, NY
    It will most likely run off your fill neck or fill hose.
  6. sam356, Apr 5, 2013
    #6
    sam356

    sam356 Member

    Joined:
    Oct 31, 2011
    Messages:
    125
    Location:
    Great Oaks Fairlee Creek MD
    Are you saying this is on the side of your hull, starboard side. The fill caps for fuel are on topside port and starboard on the walk way. This to me looks like the exhaust fan from the cabin.
  7. gbarger, Apr 6, 2013
    #7
    gbarger

    gbarger New Member

    Joined:
    May 16, 2012
    Messages:
    30
    Location:
    arkansas
    I do believe that is an Attwood 90 degreee P-trap fuel vent.
    They have slightly modified the design over the years and the current one is
    Part number 66419-3.

    The second one on the list. It is the one with the SS cap instead of black plastic.

    90° P-Trap Vents : Attwood Marine
  8. seldomdry, Apr 7, 2013
    #8
    seldomdry

    seldomdry Member

    Joined:
    Oct 10, 2012
    Messages:
    79
    Location:
    Stillwater MN
    Thanks gbarger, was able to find replacement caps through that link. On order...
  9. nomad69, Dec 17, 2013
    #9
    nomad69

    nomad69 Member

    Joined:
    Apr 13, 2013
    Messages:
    82
    Location:
    Iuka, ms
    Was curious if you could share part number of replacement cap. I have one missing as well. Did you find a match or replace all caps to match?

    Thanks,
    Nomad69
  10. seldomdry, Dec 18, 2013
    #10
    seldomdry

    seldomdry Member

    Joined:
    Oct 10, 2012
    Messages:
    79
    Location:
    Stillwater MN
    Go to the Attwood site and get the color number you want. I ordered mine through West Marine. You will have to buy the entire trap vent and screw of the cap. I went with white to mactch othe through hull drains. No big deal as they are cheap. Hope this works for you..

    90° P-Trap Vents : Attwood Marine
  11. nomad69, Dec 18, 2013
    #11
    nomad69

    nomad69 Member

    Joined:
    Apr 13, 2013
    Messages:
    82
    Location:
    Iuka, ms
    thanks for the info. Another thing on my to do list. Thankfully they are not as pricey as the weather shield around the aft deck. I had to order a new left side, left rear corner, and left rear piece last week and I will have to say that Carver is proud of that stuff. :eek: Wouldn't you know that it is not just white acrylic, its a special gel-coat white acrylic.
  12. seldomdry, Dec 18, 2013
    #12
    seldomdry

    seldomdry Member

    Joined:
    Oct 10, 2012
    Messages:
    79
    Location:
    Stillwater MN
    Would you happen to have the part number for the button plugs that hold those panels on??
  13. nomad69, Dec 18, 2013
    #13
    nomad69

    nomad69 Member

    Joined:
    Apr 13, 2013
    Messages:
    82
    Location:
    Iuka, ms
    Rivet: #7902700 Nylon 1 1/2" $0.36 each
    Standoff: #6678400 white nylon 3/4 x 7/8. $5.69 each

    Talk to Bret @ carver yachts parts dept. He is very helpful.

    My boat was missing these parts when I purchased it. I am replacing all the rivets with new ones to prevent other panels from coming loose due to age. Luckily the standoffs where still hanging on to the rivet stem. I only had to get five of those.
  14. seldomdry, Dec 19, 2013
    #14
    seldomdry

    seldomdry Member

    Joined:
    Oct 10, 2012
    Messages:
    79
    Location:
    Stillwater MN
    Perfect. THX My 355 same year. I did change tops this fall. Green gone..
  15. nomad69, Dec 19, 2013
    #15
    nomad69

    nomad69 Member

    Joined:
    Apr 13, 2013
    Messages:
    82
    Location:
    Iuka, ms
    I am not really wild about the green either. I would like to go back with Black. Black will be hot but I like it, doesn't show the spider poop as bad. My canvas's are in good shape so that will be a little further down the to do list.
  16. VIPNiSS, Mar 10, 2014
    #16
    VIPNiSS

    VIPNiSS New Member

    Joined:
    Nov 1, 2013
    Messages:
    3
    Location:
    Atlanta
    nomad69.. i sent ya a PM.. can you let me know the contact you talked to for those rivets?
  17. nomad69, Mar 10, 2014
    #17
    nomad69

    nomad69 Member

    Joined:
    Apr 13, 2013
    Messages:
    82
    Location:
    Iuka, ms
    VIPNISS, just sent you a PM with info.

    Carver Yachts Parts dept. 920-822-3214 ask for Bret Temple
  18. VIPNiSS, Mar 10, 2014
    #18
    VIPNiSS

    VIPNiSS New Member

    Joined:
    Nov 1, 2013
    Messages:
    3
    Location:
    Atlanta
    thank you nomad
  19. Monepit, Mar 11, 2014
    #19
    Monepit

    Monepit Member

    Joined:
    May 27, 2013
    Messages:
    146
    Location:
    Evansville, in
    Boy the memories.been through all of that with the 355. Carver was pricy in the panels but at least they will still make them. They are a great company. And Brett is the best you will find.
