50 feet long and 150 mph... sustained!!

Discussion in 'General Yachting Discussion' started by YachtForums, Feb 15, 2005.

You need to be registered and signed in to view this content.
  1. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,611
    Location:
    South Florida
    I know, I know... it's not a yacht.

    But... just for a minute, let's choke the diesels and spool one of these up.

    http://www.turbinemarine.com/

    Be sure to check out the videos!!!!!!!

    Enjoy! :cool:
  2. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,380
    Location:
    Sweden
    I would like to have just the sound of a turbine in an ordinary daycruiser. Maybe through loudspeakers and then go around in the ports scaring the ---- out of all PWC-terrorists and kids with noisy V8:s... ;)

    But what is surprising with the videos; How can they go at that speed without racing life-jackets and helmets??? Or are they thinking that if they crash they will die anyway? :(
  3. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,611
    Location:
    South Florida
    Both the OuterLimits and the NorTech that are equipped with MarineTurbine's powerplants are each 50 feet in length (or there-abouts). These boats can run in 2-3 footers at this speed with complete control, barring any un-foreseen circumstances.

    The real question is this... turbine engines DON'T respond quickly to throttle. Therefore when running in rough water, where the hull is launching off waves and coming entirely out of the water, they are putting ENORMOUS stress on the outdrives. I can't imagine the drives would last for very long, certainly not as long as the turbines are rated... around 10,000+ hours.

    The lack of throttle response would also be a negating factor in safety, as quick throttle response can get you out of a multitude of sins. Worse then this, a constant throttle can actually get you into more trouble.
  4. AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,380
    Location:
    Sweden
    I was active in offshore powerboat racing for about twenty years. We didnĀ“t ever go out without all the safety gear on, not even for the shortest test drive.
    Besides that you can hit floating debris, any mechanical failure can be lethal already at speeds above 60 knots. Lost steering is common, one engine or drive giving up will give the same result and I have lost many friends over the years, despite all safety precautions...
    This is one of the things you can not learn the hard way, since you will probably not get a second chance!

    I would actually not go out with that kind of boat without a canopy of the fighter jet type... :cool:
  5. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,611
    Location:
    South Florida
    You're absolutely right on all these points. I've seen it happen.

    While canopies add a high level of protection from the tsunami hitting you in the face during a stuff, a helmut and life-preserver are simply common sense.

    In the case of this Turbine Nortech, they are using a partial canopy and it looks sufficient to divert water during a "deep-sea dive." ;)

    Ultimately, these boats were built as recreational boats and at "pleasure boat" speed, it's unlikely that any mishaps would result in bodily harm. Push these boats to their speed thresholds... and all bets are off!

    Now where's that helmut!
  6. catmando

    catmando Senior Member

    Joined:
    Mar 3, 2005
    Messages:
    471
    Location:
    Arlington Tx
    I had the great pleasure of meeting John Arruda and John Haggin(owner of the AMF Outerlimits turbine boat) at the Miami boat show. Mr. Haggin's boat is the fastest 51' Outerlimits ever built(125mph). Mr. Arruda's 50' Nor Tech Supercat was built with four 850SC motors in an inline configuration. He acquired it from the previous owner and rerigged it with his turbines.

    The Feb. issue of Extreme Boats magazine has an article on these boats.

    www.extremeboatsmag.com
  7. catmando

    catmando Senior Member

    Joined:
    Mar 3, 2005
    Messages:
    471
    Location:
    Arlington Tx
    The Nor Tech's "partial canopy" is merely a windshield for diverting air over the passengers. Of course it might also double as a water diverter, but we all hope that never happens.

    There are a number of Nor Tech cats running north of 150. The green monster, Xtreme Xhibit, powered by FOUR 1500hp motors, is testing close to 200mph. It is an open cockpit boat.

    I agree with AMG; those speeds are way too fast not to have a full-race canopy, an escape hatch in the tunnel, and oxygen on board. But sometimes even those precautions don't guarantee survival.

    Two years ago, Ed Mosmiller and a friend were testing his canopied 40' turbine Skater on the Chesapeake when they hit something, possibly a sand bar, at high speed. Ed was found hanging upside down in his harness, drowned. The body of his friend was found three months later.

    Last year, Randy Linebach, driver of the Supercat Airborne Marine, was killed in Orange Beach, Al., during a testing session before the race.
  8. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,611
    Location:
    South Florida
    Hi Catmando,

    Welcome aboard! I have to tell you, your screen name is reminiscent of a very unique catamaran that was native to South Florida waters in the mid-1980's. It was "Cat-Man-Do", powered by 4 Mercury V-8 outboards. It's been over 20 years, so it's hard for me to remember, but I think this was a "one-off" cat produced by Express or Baja... I may be wrong. It was way ahead of its time and garnered ALOT of attention.

    I'm familiar with the accidents you eluded to. It's really a tragedy. I have lost a couple of friends over the years from the same. Back in the mid-80's, I raced a 24' Skater. In one year, we lost Dick Fullem, Mike Poppa and Mark Lavin (remember Jesse James?) Each of them stuffed in high speed cat accidents. The following year, I was racing in the Lee County Ft. Myers regatta and I went through a similar accident... but swam away.

    These were pioneering days in offshore racing, when the likes of Chris Craft and Cougar cats dominated the circuit. Do you remember Maelstrom? This is the cat that almost killed an old aquaintence, Bob Saccenti (from Apache). These were the years that race teams had more "dollars than sense". Al Copeland (Popeyes) had both a Cat and a Deep-V in competition, not to mention his chase helicopter. Bob Kaiser (Gallagher/Kaiser Systems) was racing an aluminum CUV (maybe it was a Cougar, I don't remember).

    The guys in my class included Felix Seralles (Don Q Rum), Smooth Operater, High Risk, Panama Jack, Long Shot, Special Edition (J.D. Delia) and others. How we survived in 24' Skaters without restraining harnesses and canopy systems.... I don't know! Much of today's safety equipment and regulations came from the tragedies mentioned above. Specifically, the death of Mark Lavin. His family was intrumental in initiating safety protocols. (the Lavin Foundation)

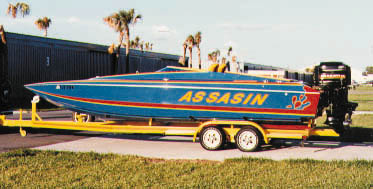

    Thankfully, a man's testosterone level decreases with age, otherwise we would never live long enough to tell our kids how fast we were. ;) Here's a picture of my Skater... when idling was a dirty word. Now days... idling is something I look forward to. :)

    Attached Files:

  9. catmando

    catmando Senior Member

    Joined:
    Mar 3, 2005
    Messages:
    471
    Location:
    Arlington Tx
    My first ride in a performance boat was in an American Offshore 3100 cat(Chris Cat as I'm sure you know) on Grand Lake in Oklahoma back in '97. I was hooked! I like Bob Seger's song Going To Katmandu, so that's how I got my name. :)

    Thanks for the memories of all those famous racers and their famous boats. I came to performance boating late in life(I'm 61 years old now), so I need to brush up on the history every chance I get. Could you mention a few books I could purchase toward that end?

    My age and the speed of my boat prove that even old guys still have the need for speed. :D Howard Arneson is pushing 85 and has logged more hours at 150+ than any man alive today. He still runs his 46' Skater, powered by a single 4500hp turbine, on Mission Bay in San Francisco. He says it's "therapeutic" lol.

    Too bad I just found this forum. I was in Miami for the show, we could have had a few beers together.

    Yes I know DJD and Packinair. I talked to Scott about buying his 23' Sanger cat, but I had been on the trail of the Carlson long before.
  10. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,611
    Location:
    South Florida
    61 years old with a 100 mph boat? A little late for the mid-life crisis! :D

    We've found a number of OSO'ers, with $500,000+ Cigarettes and Skaters, are slowing down a little and taking a look at bigger boats. Heck... I'm one of 'em!

    For a good read on the history of offshore racing, I would suggest the mother of all books... "Searace", written by John Crouse. He is a writer and journalist that spent over 30 years covering the sport, before publishing "Searace" in 1989.

    Be prepared for a Books-A-Million sticker shock when you buy it. It retailed for $69.95 in 1990. I can't imagine what it will cost today.... maybe an unlimited credit line. :eek:

    On Howard Arneson, I talked to him twice in the 80's. Once at a race and the next time on the phone regarding a propulsion project. He is a true hero for entrepreneurs and fast-boat fanatics alike.
  11. catmando

    catmando Senior Member

    Joined:
    Mar 3, 2005
    Messages:
    471
    Location:
    Arlington Tx
    I remember talking to Crouse at the 2001 Miami show. Interesting man with lots of great stories, but he was in a legal spat with somebody at that time and wouldn't shut up about it. :rolleyes: He had his book there, I think it was $50.
  12. catmando

    catmando Senior Member

    Joined:
    Mar 3, 2005
    Messages:
    471
    Location:
    Arlington Tx
    Do you still have the Skater? I've heard those 24' cats are very "temperamental", shall we say. Did(do) you have any handling issues?
  13. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,611
    Location:
    South Florida
    I sold the 24' in the 80's. Graduated to a 28' Skater in the 90's. Never had any handling problems with either one of them. Two of the best performance boats I've ever owned.

    In the late 80's, a gentleman named George Linder, built a cat for Mark and Chris Lavin. (Jesse James) They were known as Conquest Cats. Had he continued with production after the untimely death of Mark, I would have bought one and campaigned it in the open class. These boats were WAY ahead of their time. I believe only two were built, I could be wrong. One was destroyed when Mark was killed. The other... I'm not sure.

    If you're not familiar with George Linder, he was to offshore powerboat design, what Jack Hargrave was to yachts. George was the designer behind the legendary Challengers (also replicated as Superboats and Shadows).

    Today, there are many choices available in the cat category... Skater, Spectre, AMT, etc. Of these three, the AMT Cat has become dominant. This is partially due to having one of the world's best throttlemen campaigning them (like Gary Ballough). But equally, because the AMT design is somewhat like the original Conquest Cat that George designed.

    George was way ahead of his time...
  14. catmando

    catmando Senior Member

    Joined:
    Mar 3, 2005
    Messages:
    471
    Location:
    Arlington Tx
    I didn't know the AMT is an offshoot of the Conquest. If I'm not mistaken, George also designed the Chris/Shadow Cats. George and Rich Luhrs(T2x) are long-time pals.

    Yes, AMT is dominant in its class, and MTI has forged ahead of Skater in the Big Cat offshore racing wars. I wonder what Peter Hledin has up his sleeve to zap Randy with??? Heh heh.

    I can't wait to see what the MTI 55 is going to look like. For power, how about twin 1200hp Isotta Franchini diesels and a 1500hp turbine in the center? That turbine should get it to 100+. I wonder why Randy didn't build a 48-50' cat instead of that monster? Who's gonna insure the **** thing??? :eek: Can't hardly get cat insurance now as it is. :(
  15. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,611
    Location:
    South Florida
    Yep, you know your history. George designed the Chris-Craft and Shadow Cats too. The AMT is not a "direct" off-shoot of the Conquest. There were design similarities that were more a function of volumetrics... than the "look" of the boat.
  16. catmando

    catmando Senior Member

    Joined:
    Mar 3, 2005
    Messages:
    471
    Location:
    Arlington Tx
    CTDave why don't you chime in here? You've been involved in performance boating for many years.
  17. catmando

    catmando Senior Member

    Joined:
    Mar 3, 2005
    Messages:
    471
    Location:
    Arlington Tx
    Now I don't know about poor throttle response from the turbines, but it wouldn't surprise me if Turbine Marine has solved that problem along with the other systems it reconfigures.

    However, they HAVE solved the outdrive reliability problem. The turbine output reduction gearbox is fitted with a torque metering system that allows the driver to monitor and limit the ft/lbs of torque to the drive at any given time.
  18. catmando

    catmando Senior Member

    Joined:
    Mar 3, 2005
    Messages:
    471
    Location:
    Arlington Tx
    You're right about drive life, especially with the Merc SSM#6. With piston engines up to 1500HP you wouldn't have many problems with the 6, but 1500HP turbines put out too much torque. I know the Aqua Toy Store Nor-Tech and the Turbine Marine Nor-Tech have #6s, but running almost 2000ft. lbs. through two 90* bends in the drive can't be good for it.

    Shaft drives are the way to go with the T53 and T55 turbines. Callan Marine's chief mechanic told me he completely rebuilds the BPM shaft drives on the race boat after every race. You probably wouldn't have to do that on a pleasureboat though. Drive oil should be replaced every 10 hours running time in a pleasureboat.
  19. catmando

    catmando Senior Member

    Joined:
    Mar 3, 2005
    Messages:
    471
    Location:
    Arlington Tx
    Update on the 55MTIs; Dan Jackson's 55 has twin 1075s with BPM drives and a rudder. Another one called "Jaws" has four 1075s. You can find pics of them on OSO in the MTI forum.
  20. alloyed2sea

    alloyed2sea Moderator

    Joined:
    Jan 28, 2004
    Messages:
    872
    Location:
    Alex, VA
    To be fair,...

    ..., CC & Ford thought of it first.
    Heard they had some real "heat" problems underneath which prematurely ended the program. :eek:
    CHeers!
    Eric
    PS - My vote for the marine motor of the future is diesel-electric, no?

    Attached Files:
