24v Battery Boat System - need 12v

Hi,

You should be able to get 6,12,18 and 24V out of a combnation of 4 6V Batteries.

If you start at the positive of the set and follow the lead from the negative terminal of the same battery you will see it goes to the positive of another one.

If you use your test meter between the first positive and the negative of the second battery you should see 12 V.

You can also do this in reverse starting at the negative post.

I am not sure taking a constant draw off one battery ( or 2 in your case) connected in series is a good idea from what I have heard but have not personally experienced any failures that I would attribute to this practice.

Hi,

The fact that you have four 12V in Series means that there must be two pairs in parallel or you would have 48V at the end of the connections.

When I read you had four batteries I just assumed that they must be 6V Cells as four in series for 24V is not something I have come across before.

You can't tap one 12 volt battery that is being charged in series with a 24V charger, as mentioned, one battery will be cooked as the regulator tries to charge the dead one.

Best and cheapest solution is to pull a second piece of #6 to the second 12 volt battery wired in series with the first one.
As long as the load is split equally between the two batteries in series there will be no problems.
Parallel the two #6's at the amp with a distribution block, you cant have too much current for an amp, so this should work well. Verify all your voltages before connecting equipment, 24 VDC will fry an amp.

Newmar make a DC to DC converter, that would be the best option though others have been mentioned that would work.

Hi,

If he just runs a single cable between two positives and then picks up the negative somewhere else connected to the 24V System he will have 24V on one of the leads.

If you are going to do this run a lead from each positive of two 12V Batteries connected in series and another lead from each negative on the same batteries.

As suggested above join both pairs of the like polarity leads near the amp in a JB or similar and please test the result before connecting your equipment via a fuse protected link to the supply.

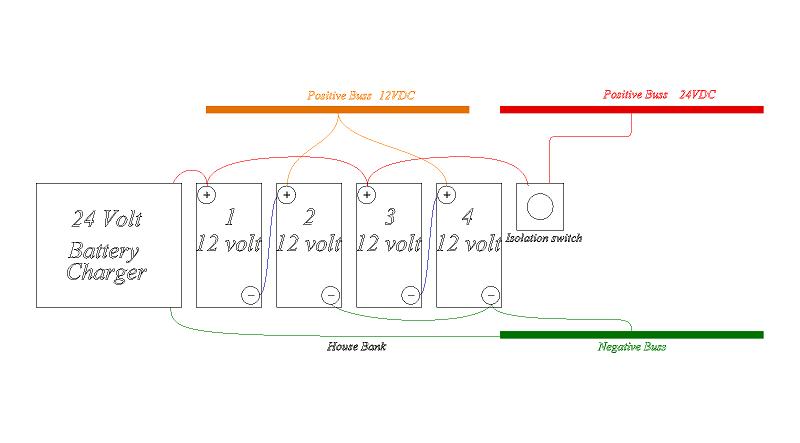

As I understand what you have and would like to do what I have drawn will work. The positive post on batteries #1 & #3 will have 24VDC at all times not only from the charger but because the batteries are in series. Batteries #2 & #4 will have 12VDC at the post, however it is problematic due to the uneven loads placed on the batteries. You will end up replacing batteries more often !! The best solution is a 24VDC to 12VDC converter.

Hi,

When I went to school I do not recall being able to get 24V out of two positives without the addition of a negative somewhere. ( normally connecting one positive to one negative)

Where would you have this guy hook his negative to this solution?

To the negative buss. It's pretty simple really.

Thanks Henning, I should have mentioned that.

It was on the schematic..... which is pretty much how I set up all my house banks, one series buss and one parallel buss. The negative buss works both. Several of the better inverters do it all for you as well.

That would be your choice, both will work, a converter would be more technically correct. As to the selection of the converter you would have to check out the spec's, I understand that Newmar have quite a range and I am sure there are other manufactures out there as well.

Unless you are looking to run an amp for a major rock concert, you will have no problems just hooking up to a positive and negative terminal off of one of your batteries. I'm assuming you're hooking up a car stereo amp, and unless you're looking at bass booms to shatter the windows, you won't be drawing enough current to cause any problems with your charging system or batteries. If you were running a bow thruster or 12v refrigeration, that would be an issue. A stereo amp or some bridge electronics, cell phone charger....no worries.
