1982 6/71 T inline 6 ,2 Stroke Diesel engine what's correct oil ?

Discussion in 'Engines' started by Racerx4772, Jul 25, 2022.

You need to be registered and signed in to view this content.
Page 1 of 2
  1. Racerx4772, Jul 25, 2022
    #1
    Racerx4772

    Racerx4772 New Member

    Joined:
    Jul 25, 2022
    Messages:
    18
    Location:
    77469
    Motors have around 2000 hours , What's good oil pressure and water temperature ?
    Last edited by a moderator: Jul 25, 2022
  2. MBevins, Jul 25, 2022
    #2
    MBevins

    MBevins Senior Member

    Joined:
    May 23, 2008
    Messages:
    1,225
    Location:
    Windsor On. Canada
    When on plane expect about 40psi
    At 1000rpm expect about 20psi.
    Normal temp is about 175-180.
  3. Racerx4772, Jul 25, 2022
    #3
    Racerx4772

    Racerx4772 New Member

    Joined:
    Jul 25, 2022
    Messages:
    18
    Location:
    77469
    Thank you , what's the correct oil for those motors and about how many quarts or gallons ?

    Jerry
  4. Capt Ralph, Jul 25, 2022
    #4
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,436
    Location:
    Satsuma, FL
    In warm climates, 40w, CF2 oil. Napa fleet, Shell T1. Delo 100.
    Must have that API CF2 Rating.

    Do not let 5psi oil pressure upset you at idle and hot. It is flowing oil.

    Check oil level cold. First thing in the morning. Then, just fill to the full line, not over.
    Just shuting down a few minutes and dipping the oil will make you think it is low. It is not.
    Lots of oil stays in the galleys for a long time.
    Last edited: Jul 25, 2022
  5. Racerx4772, Jul 25, 2022
    #5
    Racerx4772

    Racerx4772 New Member

    Joined:
    Jul 25, 2022
    Messages:
    18
    Location:
    77469
    Thank you !

    Jerry
  6. boatpoor, Jul 25, 2022
    #6
    boatpoor

    boatpoor Active Member

    Joined:
    May 4, 2016
    Messages:
    247
    Location:
    32407
    Don't let the temp get over 180 or you'll be replacing a head.
  7. Racerx4772, Jul 25, 2022
    #7
    Racerx4772

    Racerx4772 New Member

    Joined:
    Jul 25, 2022
    Messages:
    18
    Location:
    77469
    Thanks , that's what I was concerned about .
    One motor is good on temp . I'm starting to think the wrong oil was used in the other one and causing that motor to have a higher temp . Probably best to change it and see what happens .
    Any idea of how many quarts or gallons of oil ?
  8. boatpoor, Jul 25, 2022
    #8
    boatpoor

    boatpoor Active Member

    Joined:
    May 4, 2016
    Messages:
    247
    Location:
    32407
    Depends on the oil pan, but probably in the 6 gallon range.
  9. Capt Ralph, Jul 25, 2022
    #9
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,436
    Location:
    Satsuma, FL
    Oil is on the bottom of the list of things causing warmer operation.
    External pick-up/strainer, internal strainer, rubber raw water pump impeller, heat exchanger, coolant level, thermostat, proper temp sender-gauge working and exhaust dump can/shower head.
    An IR heat gun would be the first tool to pick up while shopping.

    An other thought, start asking around for a trust worthy Detroit tech.
    captholli likes this.
  10. MBevins, Jul 25, 2022
    #10
    MBevins

    MBevins Senior Member

    Joined:
    May 23, 2008
    Messages:
    1,225
    Location:
    Windsor On. Canada
    That's about right.
  11. Racerx4772, Jul 26, 2022
    #11
    Racerx4772

    Racerx4772 New Member

    Joined:
    Jul 25, 2022
    Messages:
    18
    Location:
    77469
    Thanks for all the information !! Cars , motorcycles , houses , race cars , motor coach , campers , collision repair are my background Boats not so much . Only thing i know about that motor is it has fresh oil and looks clean - water pump impeller has been changed . Low rpm under 900 cooling temp on gauge good over that while under way it was showing above 180 . I do have my IR heat gun at the boat , was checking ac temps .
  12. MBevins, Jul 26, 2022
    #12
    MBevins

    MBevins Senior Member

    Joined:
    May 23, 2008
    Messages:
    1,225
    Location:
    Windsor On. Canada
    Define "above 180"
  13. Racerx4772, Jul 26, 2022
    #13
    Racerx4772

    Racerx4772 New Member

    Joined:
    Jul 25, 2022
    Messages:
    18
    Location:
    77469
    gauge was reading 195 on that motor above 1000 rpm and cooled quickly under 1000
  14. MBevins, Jul 26, 2022
    #14
    MBevins

    MBevins Senior Member

    Joined:
    May 23, 2008
    Messages:
    1,225
    Location:
    Windsor On. Canada
    If it's truly hitting that number you've got an issue that needs looking into. Perhaps heat exchangers are due for cleaning if your in salt water.
  15. Racerx4772, Jul 26, 2022
    #15
    Racerx4772

    Racerx4772 New Member

    Joined:
    Jul 25, 2022
    Messages:
    18
    Location:
    77469
    yes I'm in salt , prior owner had boat sitting 95%of the time although he ran the motors once a month is what he said . You can chemically clean those is that correct ?
  16. boatpoor, Jul 26, 2022
    #16
    boatpoor

    boatpoor Active Member

    Joined:
    May 4, 2016
    Messages:
    247
    Location:
    32407
    What kind of strainer does it have?
  17. Racerx4772, Jul 26, 2022
    #17
    Racerx4772

    Racerx4772 New Member

    Joined:
    Jul 25, 2022
    Messages:
    18
    Location:
    77469
    lol , no idea .
    there is a strainer that I've cleaned for the a/c water line . Is it like that one ?
  18. Pascal, Jul 26, 2022
    #18
    Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,546
    Location:
    Miami, FL
    195 while not destructive is very high at low RPM. It s ok for a DD to hit 195 when running at WOT but not at cruise and certainly not at “above 1000”

    Follow the list Ralph posted.

    how much water is flowing out the exhausts?

    if you have to clean the system, circulating barnacle buster thru the raw water circuit using a bucket and a bilge pump is one way to do it but if you re not familiar with diesels and don’t have the engine manual you should have a mechanic do it. You will learn a few things too.

    most boats have internal strainers like the AC but bigger. Hard to miss. Also check the outside water inlet for growth and debris. When is the last time a diver cleaned the bottom?
  19. Racerx4772, Jul 26, 2022
    #19
    Racerx4772

    Racerx4772 New Member

    Joined:
    Jul 25, 2022
    Messages:
    18
    Location:
    77469

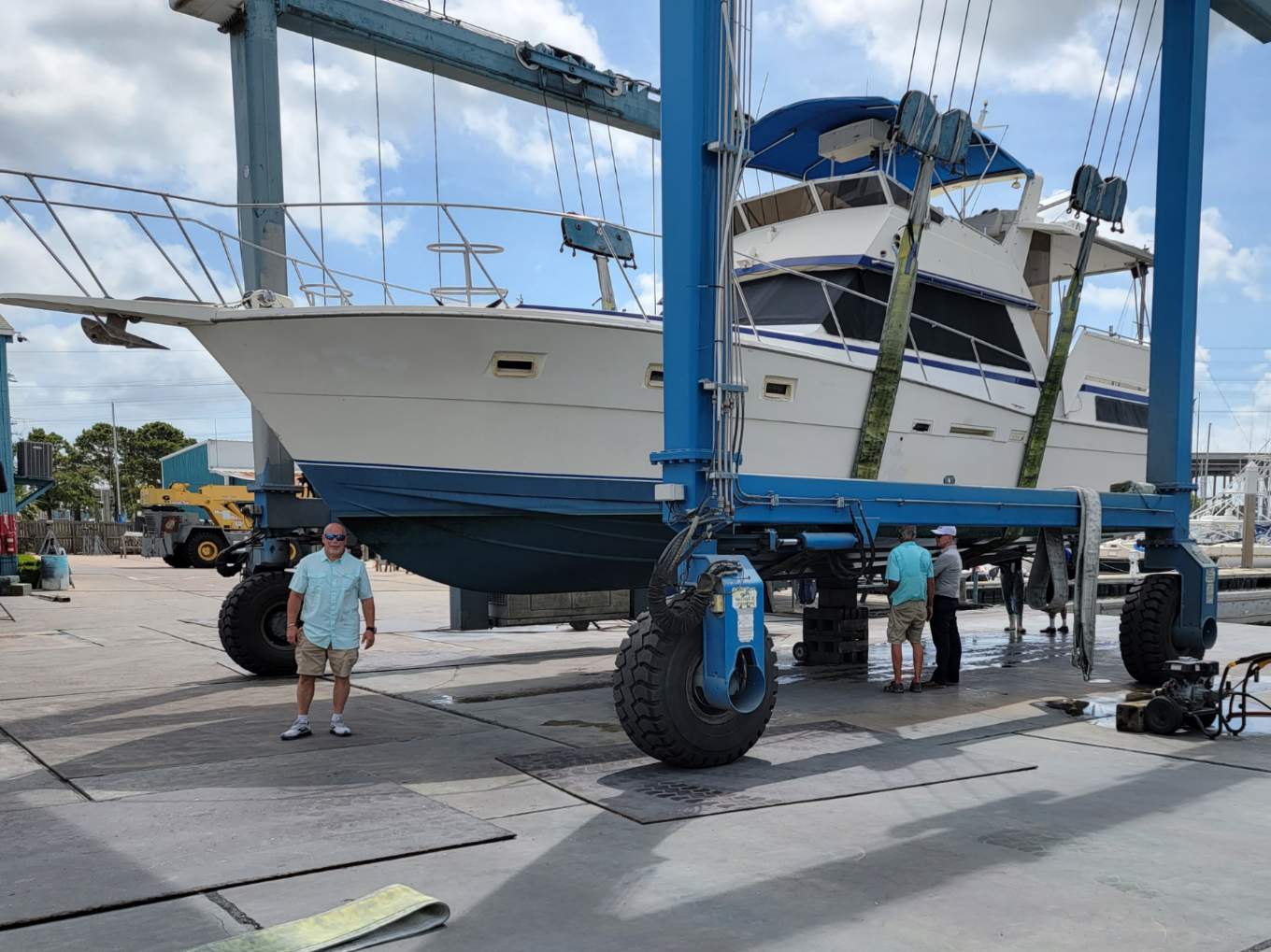

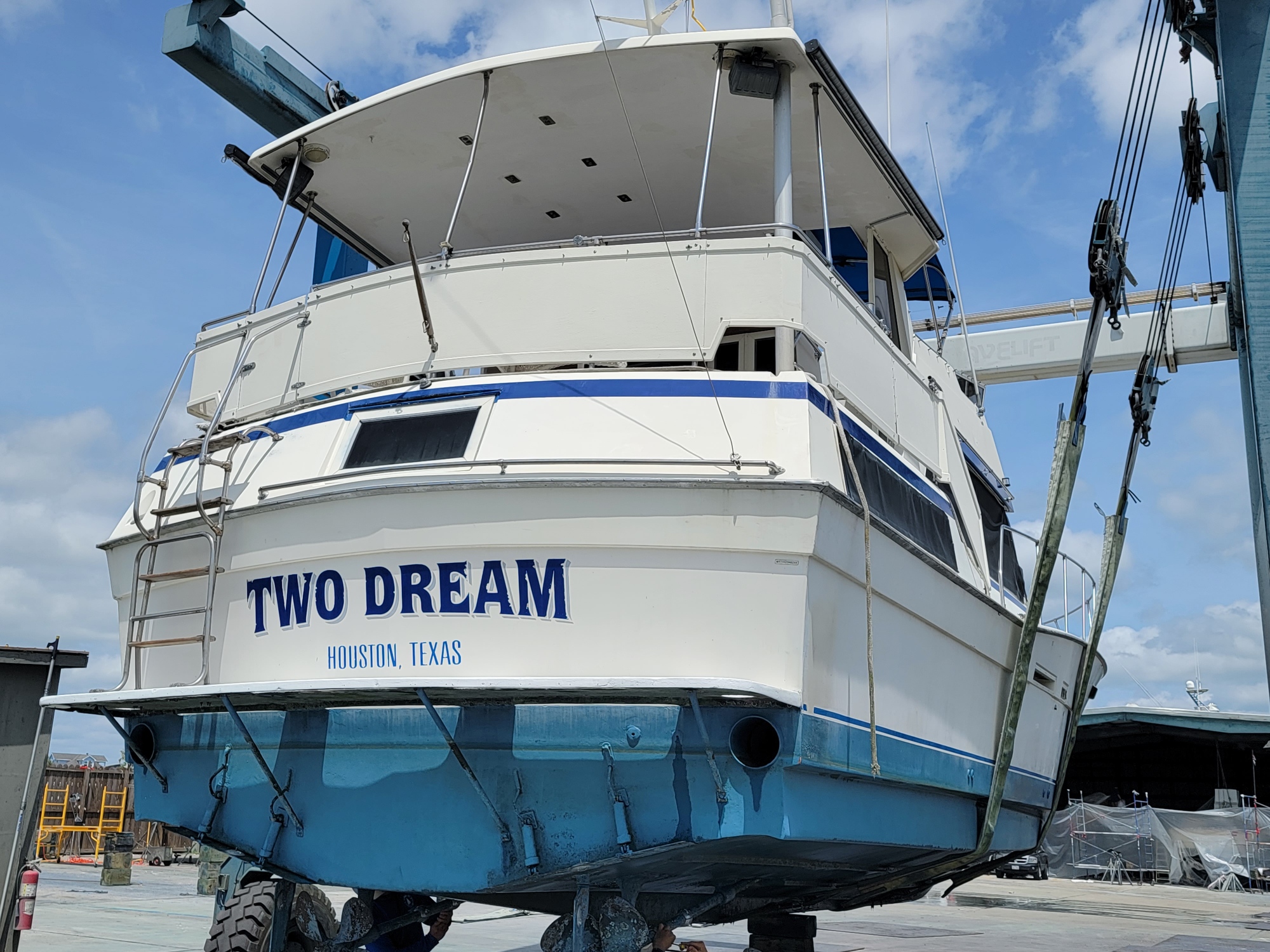

    Good advice , ill call the mechanic # I have but may try to find someone else . The boat was hauled out a month ago for Survey and was very clean on the bottom . about a 15 minute pressure wash and new zincs were installed .

    Attached Files:

    chesapeake46 likes this.
  20. MBevins, Jul 26, 2022
    #20
    MBevins

    MBevins Senior Member

    Joined:
    May 23, 2008
    Messages:
    1,225
    Location:
    Windsor On. Canada
    There are no strainers on the mains on this boat. It has the external ones that don't allow weeds and debris to enter, the name escapes me, perhaps Pascal will remind me.
