1500 MANS; Turbo overheat?

Discussion in 'Engines' started by bayardtaylor, Mar 28, 2009.

You need to be registered and signed in to view this content.
  1. bayardtaylor, Mar 28, 2009
    #1
    bayardtaylor

    bayardtaylor New Member

    Joined:
    Mar 27, 2009
    Messages:
    2
    Location:
    beaufort
    I have a 2006 56 viking with 1500 mans
    the turbos are over heating and blowing because the angle of the engiens slant forward, so when you fill the fresh water expansion tank you get a air pocket in the turbos, because the turbos are higher than the water tank.
    is there anyone having the same problems that I am?? please help me!!!!
  2. Capt J, Mar 28, 2009
    #2
    Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,524
    Location:
    Fort Lauderdale
    The turbo's on MAN's are not water cooled. They are lubricated and cooled by the engine oil.

    The expansion tank cannot be filled to the top on any engine or there would be no room for expansion (unless you have a coolant overflow bottle for it to go into), and the coolant usually sits 1-2" below the top of the tank.

    If you were low on coolant the engine water temperature would be too high long before anything else. This is not your problem.

    You're aftercoolers use water to cool them, and it is forced through with a pump driven off of the engine.

    If you are getting high turbo heat alarms, look to several different things.

    Is your bottom and running gear clean of barnacles and growth?

    Do your engine's reach the manufacturers stated top RPM? If the vessel is running too much propellor it will cause a high load/high exhaust heat situation.

    If both of these are in line, check and change both your primary and secondary fuel filters.

    BUT, from the year of the motor and sounds of this, aside from having a diver clean the bottom, CALL a MAN dealer and have a MAN mechanic come out and diagnose it.
  3. CaptPKilbride, Mar 28, 2009
    #3
    CaptPKilbride

    CaptPKilbride Senior Member

    Joined:
    Mar 16, 2004
    Messages:
    587
    Location:
    On the water
    No doubt the advice about calling a MAN dealer is the way to go here.
    The MAN engines I have seen have bleed screws on the turbo's for bleeding air out of them while filling in the expansion tank.
    This would lead me to believe they are water cooled.
  4. bayardtaylor, Mar 28, 2009
    #4
    bayardtaylor

    bayardtaylor New Member

    Joined:
    Mar 27, 2009
    Messages:
    2
    Location:
    beaufort
    you cant expect the owner of of the boat have to know where and how to bleed turbos when filling with water. it does not state that in the owners manuel
  5. CaptPKilbride, Mar 28, 2009
    #5
    CaptPKilbride

    CaptPKilbride Senior Member

    Joined:
    Mar 16, 2004
    Messages:
    587
    Location:
    On the water
    I am a little confused by your original post then.
    You stated that the turbos are overheating, and "blowing".
    How do you know they are overheating, and what happens when they "blow"?
    And if the turbos are no longer serviceable when "blown" who replaced them for you? Whoever knows enough wrenching to replace a turbo should know enough to bleed the cooling system when refilling?
    I have been reading up on the 1500 hp V-12, is this the one that came out right before the common rail motors and thus has 4 turbo's per engine, with sequential stage boost?
  6. CaptPKilbride, Mar 28, 2009
    #6
    CaptPKilbride

    CaptPKilbride Senior Member

    Joined:
    Mar 16, 2004
    Messages:
    587
    Location:
    On the water

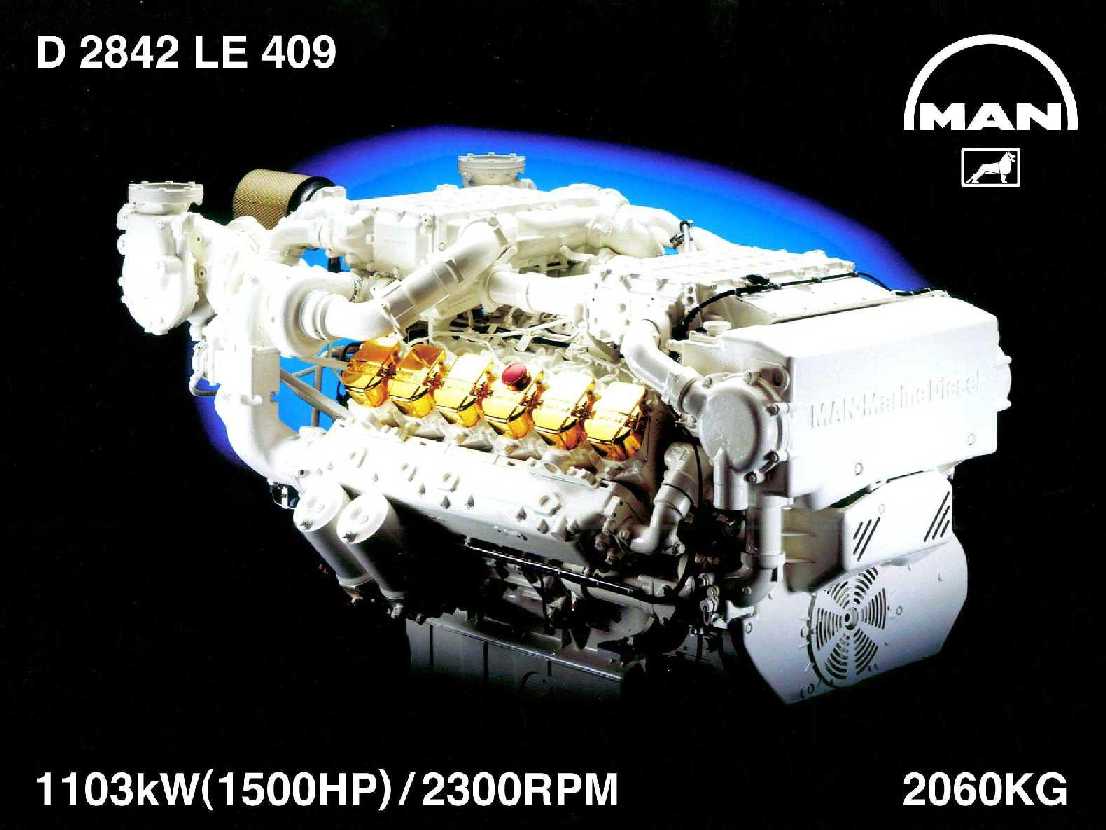

    The 1500 hp MAn engine of that vintage is the D2842LE409
    Two stage turbocharging with twin aftercoolers.
    Wow.
