Dry exhaust to wet exhaust

Discussion in 'Technical Discussion' started by Matt46post, Oct 28, 2017.

You need to be registered and signed in to view this content.
  1. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,647
    Location:
    Satsuma, FL
    Why did the factory then not go straight down thru the bottom?
  2. captholli

    captholli Senior Member

    Joined:
    Jan 4, 2010
    Messages:
    1,164
    Location:
    In The Bilge

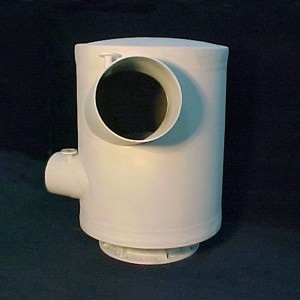

    If the OP has an 8" hole cut through the bottom outboard with a FRP prepared flange inside and a 3" waterline bypass this installation will be relatively simple as exhaust retrofits go. I would still recommend a 36"vertical wet muffler in line to silence the bypass and I would go with a dry riser and spray ring 2ft. before the muffler . This is a reasonably simple retrofit and can be done on the cheap if the OP is handy and picks his subs wisely. Detroit's sound like Sherman tanks without resonators even when muffled through underwater discharges. Underwater-with-flange-300x300.jpg
    Last edited: Oct 29, 2017
  3. Matt46post

    Matt46post Senior Member

    Joined:
    Apr 27, 2015
    Messages:
    226
    Location:
    El dorado hills california

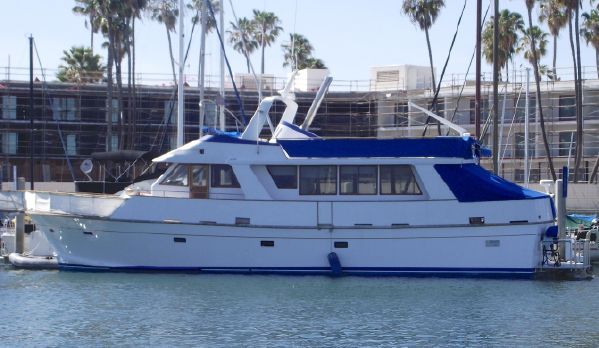

    They are both the same year boat , 1980 60’ lein hwa ,the one with side exhaust is a dive charter boat in LaPAz Mexico , the other one with the dry stack was in marina del Ray for 15-20 as a private yacht named “ sprit ‘....how much of a foot print do under water mufflers take in a engine room ? With modern technology is there away to really shrink the size of the dry stack in the salon? Ceramic coating? Better insulation? There is fire suppression sprinklers in there ,could I get it down 2’x2’ or smaller? Running the exhaust thru the transom woukd be a huge job and I believe you couldn’t get them past the fuel tanks
  4. captholli

    captholli Senior Member

    Joined:
    Jan 4, 2010
    Messages:
    1,164
    Location:
    In The Bilge
    The dive boat with the side exhaust is using 30 old technology with a horizontal dry muffler that has two ft. thickness of rocks wool insulation/ lagging around the dry can for thermal isolation from the structure and radiant heat in the E.R & the sea water is injected down line from the muffler in this system. Your vessel is a great candidate for a simple underwater / bypass wet exhaust system to free up the space in the salon/ galley area. A new wet exhaust muffler / resonator can be vertically or horizontally mounted outboard in the machinery space & doesn't require lagging after the water injection point and it will be a small foot print due to the size of your motors. Your stepping outside of the box in your thought process of what's new (expensive and unproven) technology like ceramics and high tech insulation materials. This vessel has a max price/ investment point and your best to keep it simple. A wet exhaust muffler for your rated HP and back pressure specifications would be small compared to the ancient dry system on the dive boat. Call a good marine exhaust fabricator in your area and have them give you a few different scenarios to move fwd. with and then either accept a proposal from them or price the system out for yourself and use good subs to complete the process.
  5. Matt46post

    Matt46post Senior Member

    Joined:
    Apr 27, 2015
    Messages:
    226
    Location:
    El dorado hills california
    Thanks captholli, good advice , I had no idea that dive boat was using a dry exhaust out the side,I just figured it was wet, I am going to take another look at the boat next week , if I kept the current dry stack set up do you think I can shrink the size of souround in the salon. Is that usually how big they are ?should there be a fan in there keeping air moving thru and around the stack pipes ? I need to check it out there is a good chance the engines can be getting there fresh air thru the stack also
  6. Matt46post

    Matt46post Senior Member

    Joined:
    Apr 27, 2015
    Messages:
    226
    Location:
    El dorado hills california
    Actually I know there is ports in the engine room but if you look at the pics of both boats there isn’t engine vents on either one
  7. captholli

    captholli Senior Member

    Joined:
    Jan 4, 2010
    Messages:
    1,164
    Location:
    In The Bilge
    From your photos my statements are an educated guess at best. (SWAG) I see a large diameter Blue silicone hose all the way aft that looks to be close to the inlet of the muffler and that would lead me to believe the system would be wet but the lagging on the can says "dry" to me. The photo of the vessel on anchor has a waterline exhaust discharge fwd. just under or aft of the pilot house door so the discharge of this muffler is facing fwd and that would add to back pressure issues if this were a wet system. The forward facing outlet discharge on this system is an anomaly for the running angle of any vessel. Call a marine exhaust company in your area and have them give you a few good options for this vessel.
    Last edited: Oct 29, 2017
  8. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,432
    Location:
    Fort Lauderdale
    You still have to usually have a small side exhaust when you go straight through the bottom as the back pressure while the vessel is not moving and on startup is usually too great, so you still get soot, not as much but some. Also the slower the speed the more soot as more will exit through the exhaust relief on the hull side. The other issue and a lot of builders have major issues with this causing cavitation like Lazzara, is the exhaust bubbles getting into the props and causing cavitation and vibration issues. I wouldn't screw with this modification in 100 years as the cost of doing it is going to cost a fortune compared to the boats value and could create all other sorts of issues.

    Most of the old vessels with underwater exhausts had a valve to close off the above hull exhaust....like the 98' I was on, and the old Hatteras 78' MY's. You had to be moving to close off the above water exhausts otherwise could risk the motors shutting off due to too much back pressure.
  9. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,647
    Location:
    Satsuma, FL
    I assume your picture is similar to a resonator you are talking about. Designed above my pay grade.
    However, I have been on many older boats (glass & alloy) with 3412s, 3208s, 71 & 92s that at or just after the down turn of the dry exhaust, use a dump can to mix and cool the exhaust gasses with raw water, then thru some humped hoses, straight into a near vertical pipe fastened to the bottom of the hull. The larger engines with a smaller pipe out the sides or the stern.
    On the 1400HP 3412s, I replaced the hoses and there were no baffles in the vertical tube, just the eire light from out side the boat in the water coming up. I thought the 3412s were the quietest (80 Nova tech) boat I was ever on.

    I like tanks. My youngest kat is "Sherman M4A2 Tank" (conjoined 6-71s).

    M4A2.jpg Quiet as a church mouse.

    My Tiger tank pounds the deck over head in the night. 20150722_193633a.JPG
    Last edited: Oct 29, 2017
  10. Matt46post

    Matt46post Senior Member

    Joined:
    Apr 27, 2015
    Messages:
    226
    Location:
    El dorado hills california
    Thank you
  11. Matt46post

    Matt46post Senior Member

    Joined:
    Apr 27, 2015
    Messages:
    226
    Location:
    El dorado hills california

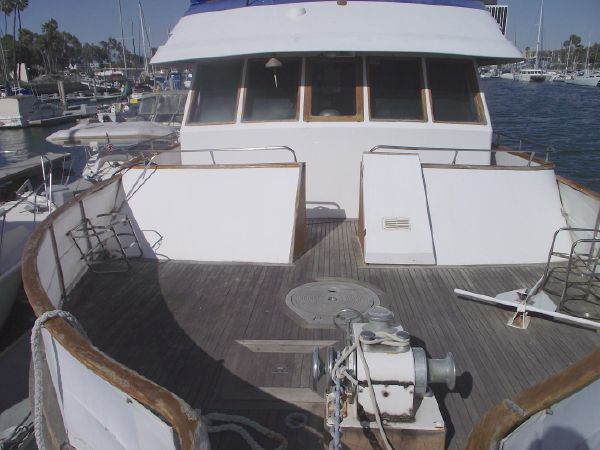

    The dry stack is right where I want to put the day beds and hot tub...lol, i guess you either love the look of the dry stack or don’t , I don’t think it really works well With the lines of this boat, the yard I have use to put flexi teak on my boats in the past ,told me you can seal up bad teak decks on these old trawlers and go right over the top of the teak decks with the flexi teak as long is there isn’t any soft spots, not sure I& that’s a good idea or not?
