Collapsable Home Built Trimaran

Discussion in 'General Sailing Discussion' started by beaul, Aug 31, 2009.

  1. beaul, Aug 31, 2009
    #1
    beaul

    beaul New Member

    Joined:
    Aug 29, 2009
    Messages:
    1
    Location:
    Brisbane Australia

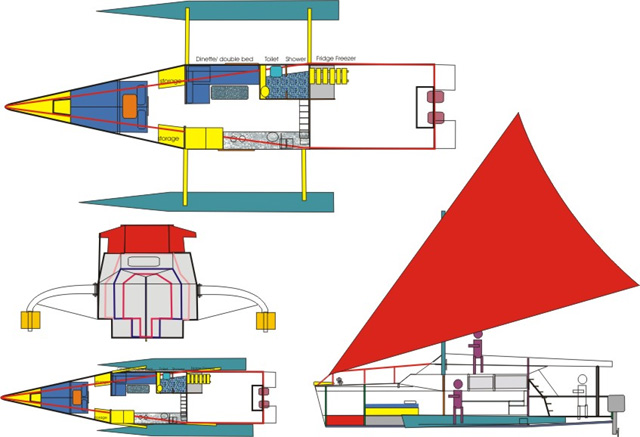

    I have designed an built a 39 ft Aluminium Trimaran which we live aboard in Brisbane Australia.
    It is designed to fit inside a 40 ft Shipping container so we can ship it anywhere we wish to cruise.
    It has a very fine entry bow section/flat bottom and does not plane or produce a bow wave. (as per the current generation of trimaran ferries)
    Currently it is powered by 2X 30 hp Honda outboards for a top speed of 10 knots but these are being replaced by 2 X90 hp outboards for a 20 knot speed.
    It is also fitted with a Oceanic Lateen sail for reaching and downwind sailing.
    Draft is 9 inches.
    I have designed it as a live aboard for tropical areas and we have a fridge and freezer, 9,000 btu air conditioner, and desalinator.

    The cost of construction was much cheaper than a 39 ft Catamaran as I am only fitting out one hull not two hulls and a bridgedeck. It only has accomodation for three (one double and a single) but we dont need the four double beds you generally have to have with a catamaran.
    The outriggers fold in for use in a Monohull mooring or the Canals of Europe.

    I had it built by a professional multihull ferry building company in Brisbane but I fitted it out myself.

    Attached Files:

  2. brian eiland, Aug 31, 2009
    #2
    brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,981
    Location:
    St Augustine, Fl and Thailand
    Interesting beaul, and welcome aboard.
    Have you had it out in any big seas?
    How long have you had it?
  3. brian eiland, Sep 3, 2009
    #3
    brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,981
    Location:
    St Augustine, Fl and Thailand
    For those that might be interested in the background of Beaul's tri vessel, and some construction photos, he started THIS SUBJECT THREAD a few years ago. I referenced this discussion as I doubt we will see this material get duplicated here.


    Your use of the word 'wedge' caught my attention. Have a look at another wedge shaped hull design that I discuss here:

    Sea Knife

    YachtForums.Com - View Single Post - Trimarans and the BladeRunner...

    and look at the two other postings #46, #48
